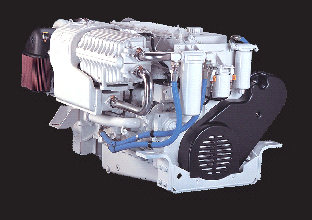

QSM11
|
Engine Specifications Configuration In-line 6-cylinder, 4-stroke diesel Bore & Stroke 125 mm x 147 mm (4.92 in x 5.79 in) Displacement 10.8 L (661 in³) Aspiration Turbocharged / Aftercooled Rotation Counterclockwise facing flywheel |
 |
Power Ratings
|
Rating |
Cooling type |
kW |
MHP |
BHP |
Rated |
Max Torque |
Emissions |
|
|
N-m |
RPM |
|||||||
|
HO/GS |
HX |
526 |
715 |
705 |
2500 |
2373 |
1700 |
EPA Tier 3, IMO II, and RCD2 |
|
HO/GS |
HX |
493 |
670 |
661 |
2300 |
2373 |
1700 |
|
|
HO/ID |
HX |
449 |
610 |
602 |
2300 |
2135 |
1700 |
|
|
HO/GS |
HX |
562 |
715 |
705 |
2500 |
2373 |
1700 |
|
|
HO/GS |
HX |
493 |
670 |
661 |
2300 |
2373 |
1700 |
IMO II, and RCD2 |
|
HO |
HX |
474 |
645 |
636 |
2300 |
2373 |
1700 |
|
|
HO/ID |
HX |
449 |
610 |
602 |
2300 |
2373 |
1700 |
|
|
HO/MD |
HX |
386 |
455 |
450 |
2100 |
1966 |
1400 |
IMO II, RCD2, EU Stage IIIa |
|
HO/HD |
HX |
298 |
405 |
400 |
2100 |
1822 |
1300 |
|
|
HO/CD |
HX |
261 |
355 |
350 |
1800 |
1695 |
1200 |
|
|
HO/CD |
HX |
220 |
300 |
295 |
1800 |
1573 |
1200 |
|
Ratings and specifications subject to change without notice. Not responsible for typographical errors.
Engine Dimensions 715, 670, 645, 610
|
Length |
Width |
Height |
Weight (Dry)* |
||||
|
mm |
in |
mm |
in |
mm |
in |
kg |
lb |
|
1328 |
43.15 |
1079.8 |
42.5 |
1012 |
39.9 |
1188 |
2620 |
*Does not include exhaust connection. Weights vary by rating. Length to flywheel housing.
Engine Dimensions 455, 405, 355, 300
|
Length |
Width |
Height |
Weight (Dry)* |
||||
|
mm |
in |
mm |
in |
mm |
in |
kg |
lb |
|
1289.7 |
50.78 |
973.7 |
38.34 |
1142.8 |
44.99 |
1184 |
2610 |
*Does not include exhaust connection. Weights vary by rating.
